AI Tips: Why is storage important for KV cache?

Although KV (Key-value) cache is usually described as an LLM inference optimization, it is actually best understood as a specialized, high‑performance storage layer that holds intermediate attention states. This article explores this aspect of KV cache and its relationship with storage.

What KV cache is

You can think of KV cache as a volatile GPU–resident, key–value store that stores per-token features so they don’t need to be recomputed. In essence, it acts like a memory tier within a multi-layer storage hierarchy.

You can think of the KV cache as a model's “High-Bandwidth memory (HBM) scratchpad.”

Why KV cache is important for AI and generative AI

Why KV cache is essential to Retrieval Augmented Generation (RAG) and inference in general

KV cache is essential for RAG because it lets the model handle long-retrieved contexts without having to recompute attention over all those tokens at every decoding step. When a large block of retrieved text is inserted into a prompt, the model encodes it once, stores the keys and values, and then reuses them during generation. This means new tokens only attend to the cached prefix instead of reprocessing thousands of context tokens repeatedly. As the retrieved context grows, KV cache keeps latency stable, prevents compute from exploding with sequence length, and makes long-context RAG both feasible and efficient.

Why KV cache is important for agentic AI

Agentic AI requires

A couple of things to note about KV cache when used in agentic AI situations include its:

• Long contexts, long chains of thought, and multi-turn loops: Agents concatenate system prompts + chat history + retrieved chunks + tool outputs. Every added token expands the KV working set. The model then rereads prior tokens’ K/V at each step.

• Sensitivity to bandwidth: The attention kernel’s speed is often limited by HBM bandwidth, not FLOPs. If KV reads stall, per token latency increases, tail latencies widen, and throughput collapses under concurrency.
• Persistence across actions and Memory of past steps: Agent steps (plan, call tools, reflect) frequently reuse the same conversation context. KV reuse avoids recomputing attention for the past—saving both time and power.

This means agents spend minutes inside a single inference session. That makes KV cache the central runtime storage system for agent state. If the KV cache is slow, insufficient, or mismanaged:

• The agent must recompute attention resulting in a huge latency spike
• The model must truncate context resulting in memory loss
• Multi-step reasoning grinds to a halt

Why KV cache is a storage problem

When examined closely, the KV cache becomes a storage issue.

When a large language model generates text one token at a time, it keeps a memory of everything it has already seen. This memory lives in the KV cache a set of tensors that store the keys and values for every layer and every past token.

At first, this cache is small. A few tokens, a few layers, a bit of GPU memory. But as the conversation grows longer—say from 1,000 tokens to 32,000—this “memory” expands linearly with the size of the context. The model must keep every past key/value vector around so that new tokens can attend back to them. And suddenly, the KV cache, not the model weights, becomes the largest memory consumer.

As GPUs have limited High-Bandwidth Memory (HBM), when the KV cache grows too large, systems must decide whether:

• Moving it (offloading) to CPU RAM or even to fast storage helps with capacity but reduces speed, because every new token must fetch pieces of that cache across slower connection interconnects.
• Compressing it saves space but may reduce accuracy.
• Storing everything in GPU memory maintains performance but limits the number of users served simultaneously.

It is easy to see that KV cache becomes not just a compute issue but a storage orchestration challenge—balancing capacity, bandwidth, latency, and cost. Long-context models, multi-user serving, and high-throughput inference all rely on how cleverly we can store, move, compress, or reuse this cache. Ultimately, generating text efficiently depends as much on memory engineering as on math.

As KV cache is a storage orchestration challenge, the ability to move back and forward the KV cache in a fast storage system is a critical strategy for managing the KV cache. Here's more information that details the reasons behind this.

KV cache requires extremely high bandwidth (HBM class)

KV cache access patterns behave in such a way that:

• Every new token must retrieve all previous keys and values
• Access frequency is done per layer × per head

This means KV cache cannot be used if in CPU memory, SSD, or network storage. To be used, it must remain in GPU HBM, which is effectively the highest performance “storage tier” available.

KV cache often can't fit in GPU memory

For effectiveness, KV cache must remain in GPU memory, but unfortunately, it often can’t fit there. The size of the KV cache increases linearly with both the context length and the number of layers, creating capacity and bandwidth challenges.

For example:

• A 70B model can require tens of gigabytes of KV cache just for 32k tokens.
• Larger contexts (100k–1M tokens) would require storage-tier thinking, such as sharding, compression, paging, etc.

When the KV cache exceeds the HBM memory, it must be stored elsewhere (CPU memory first, then fast storage).

KV cache often doesn’t reside in a single GPU

But there is an additional complexity. The KV cache often doesn’t reside in a single GPU. When models run across multiple GPUs, the KV cache is sharded across them. KV cache “follows” the model parallelism:

• Tensor parallelism: shard across layers/heads
• Sequence parallelism: shard by tokens
• Context parallelism: shard by ranges of inputs

This makes KV management similar to distributed file systems:

• Placement
• Replication
• Access path optimization
• Paging / eviction

In conclusion, KV cache pagination requires a memory-tiered storage

Indeed, recent trends see the development of storage systems optimized for tiering with KV-cache. Storage systems are, therefore, part of the KV-cache pagination management:

• GPU HBM → hot KV
• CPU RAM → warm KV
• NVMe / SSD → cold KV

Finally, why RDMA/GPUDirect (for objects or files) is important for KV cache

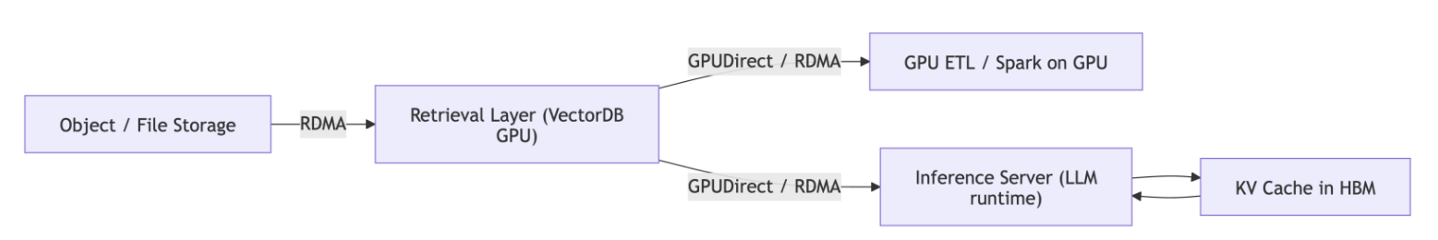

This diagram shows the end-to-end RAG + inference flow and where RDMA / GPUDirect optimizes movement into the GPU—before the KV cache becomes active.

RDMA / GPUDirect help:

• Storage → GPU ingestion:

  • RDMA (object/file) + GPUDirect allow NIC or storage to DMA directly into GPU memory, bypassing CPU copies.
  • This accelerates document load, embedding pipelines, vector index updates, and LLM input streaming.

• Before KV activation:

  • KV cache is populated after tokenization and initial forward passes occur on GPU. RDMA/GPUDirect primarily reduce the time to first token by accelerating data arrival to the GPU.

• During RAG loops:

  • Frequent retrieval (top k) + reranking benefits from GPU-resident vector DB and RDMA reads from warm storage. The faster the context assembly, the sooner the LLM can append to KV cache.

In other words, RDMA/GPUDirect accelerate the front half (docs/embeddings/context into GPU memory). Once generation starts, the KV cache dominates the hot path, acting as the L1/L2 like working store of the decoder.

Conclusion

KV cache management is a storage orchestration challenge that affects capacity, bandwidth, latency, and cost, and efficient text generation depends as much on memory engineering as on algorithms. Fast storage is essential for maximizing KV cache performance. By placing the right portions of the cache on fast, low‑latency. RDMA- and GDS-enabled storage - such as HPE Alletra MP X10000 - and offloading overflow to cost‑efficient tiers, organizations can balance speed, scale, and efficiency.
